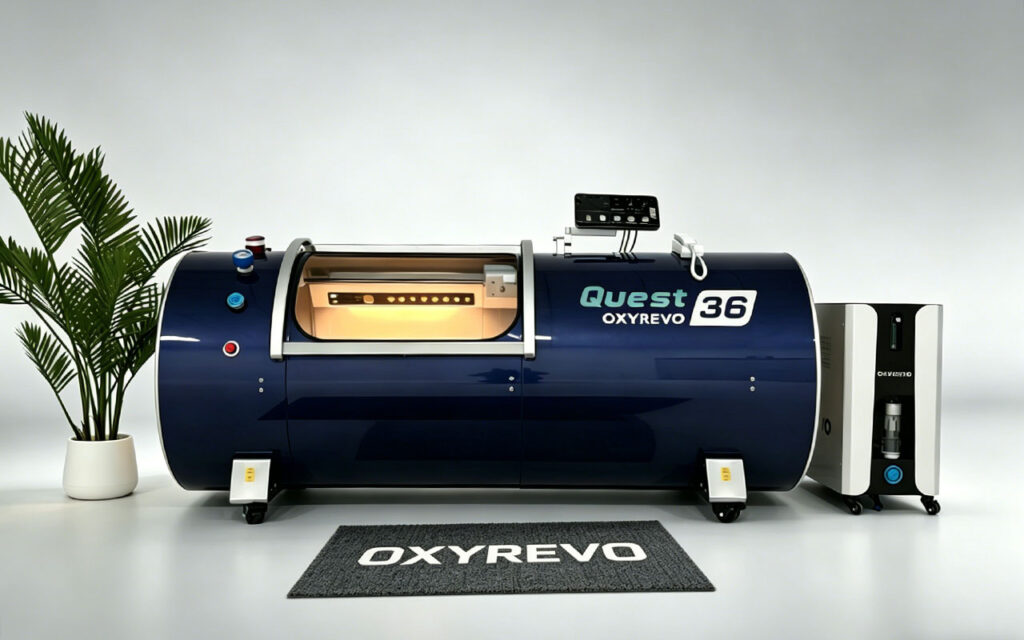

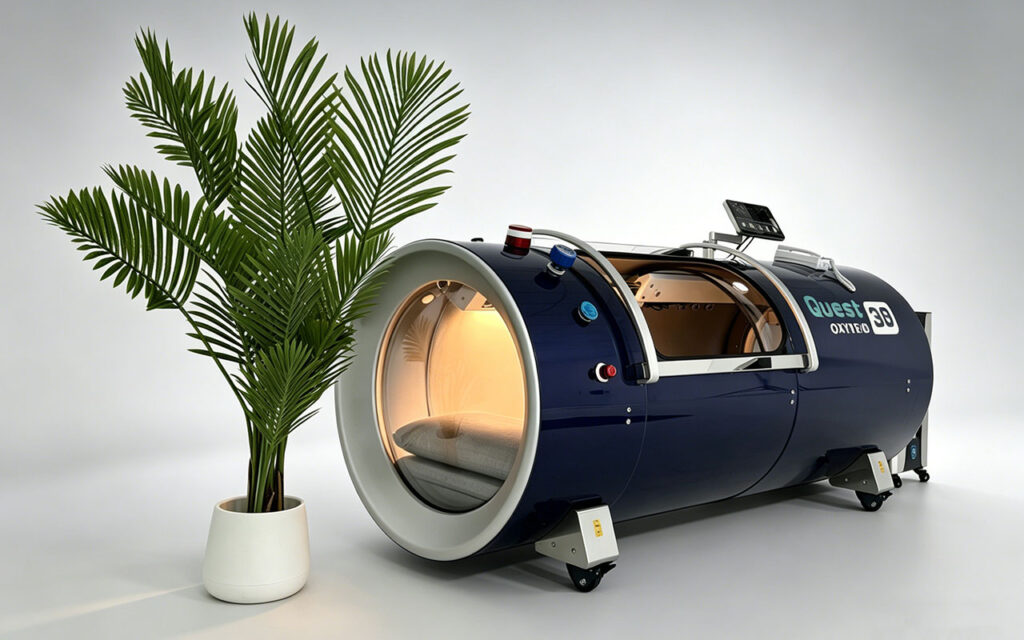

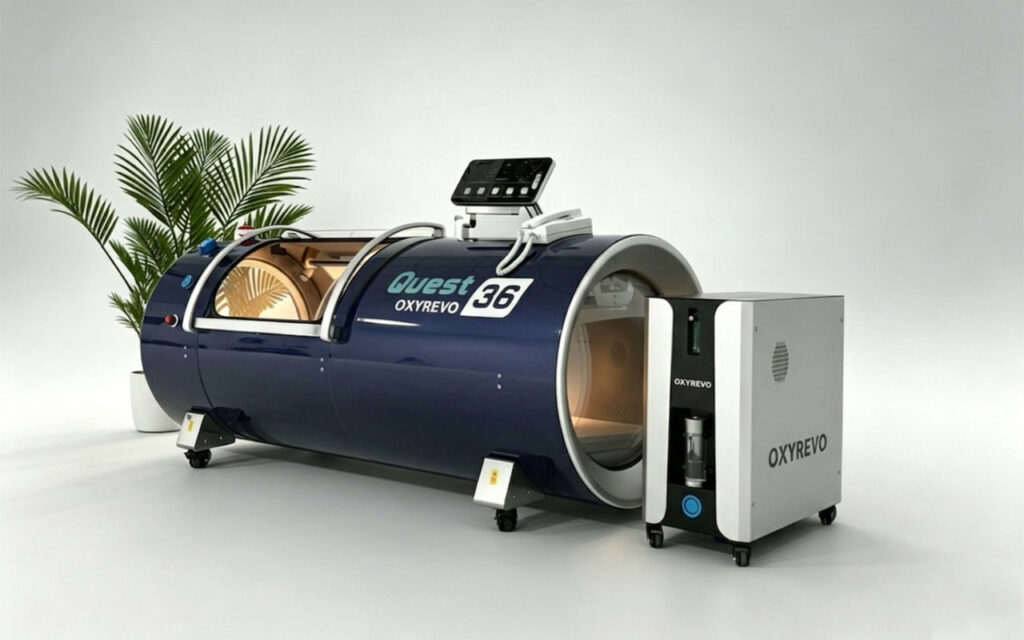

OXYREVO Hard Hyperbaric Chamber Quest36


The OXYREVO Quest36 hyperbaric chamber is a hard shell hyperbaric oxygen chamber made of durable stainless steel material. With a larger size of 89 inches in length and 36 inches in diameter, it provides ample space for one adult and a child. The chamber can operate at pressures of 1.5/1.6ATA, up to 2.0ATA pressure specially made with more thick material, allowing for faster HBOT treatment times. The chamber is equipped with a large door and two transparent windows, allowing for easy in-out operation and communication. The digital data display screen enhances the user experience, making it the ultimate choice for professional hyperbaric therapy in wellness clinics, therapy centers, and beauty spas. Additionally, it is ideal for athletes of larger sizes or two people.

Technical Specs




260KG /573LBS


220CM / 89INCHES​


90CM / 36INCHES​










Hard Type

Stainless Steel Material, Solid and Durable

Higher pressure

1.5ATA Standard, 1.6ATA Higher, Up to 2ATA

Solid Wheels

4 x Solid Wheels at bottom, easy to move

Emergency Valve

Quick Pressure Release in 30s, more safe

Timing System

0-120minutes timing automaticlly

LED Reading Light

Eyes Protected LED inside for Reading Conveniently

In-Out Communication System

Phone and Speaker Inside and Outside, allows communication easier

10L Large Oxygen Capacity

10L Oxygen Concentrator with 90-97% Pure Oxygen

Internal/External Operation Control

Control Panel Inside and Outside to Operate and Control the Chamber Anytime

Internal/External Dual Pressure Display

Pressure Readings Anytime Inside and Outside


Oxyrevo Hard Hyperbaric Oxygen Chamber

Transparent Windows Each End

OxyRevo offers a unique design with two large transparent windows located at the head and foot ends of the hyperbaric oxygen chamber. Made with aviation-grade materials and double-layered for added durability, the windows provide a larger field of view both inside and outside the chamber. Offering a more comfortable experience and reduces feelings of claustrophobia.

New advanced welding process

New advanced welding and splicing processes perfectly fit the metal and polycarbonate together, and the outside is reinforced by an aluminum ring, which is firm, beautiful and won’t deform with use. And chamber body welded by 3 pieces of different thickness stainless steel together, thus higher strength for higher pressure resistance at no bending risk for overtime use unlike others do.

In-Out Control Panel and Screen

All the hard hyperbaric chambers have two control panels inside and outside, allows you can operate the chamber yourself, no further assistance required. Also dual digital display screens inside and out show data of Temperature, Humidity, and Oxygen Purity inside the chamber via a highly precise sensor, making your operation more convenient.

Power Failure Safety System

A power failure safety system in the unit gives a safe use if the power shuts off suddenly. The system in the hard chamber will release the pressure automaticlly and slowly when power shuts off suddenly while the users are completely sleeping. The door will be dropped down automaticlly after chamber pressure released, making the chamber even safer to use.

Smart Door Sensor

Operating the hyperbaric chambers with an incompletely closed door poses a safety risk that may result in harm to oneself or damage to the chamber. Our Quest Hard Hyperbaric Chamber addresses this issue by incorporating a sensor lock feature that restricts operation of the chamber to when the door is fully closed. Additionally, there are indicator lights located inside and outside the chamber, further enhancing its safety features.

Working Pressures Adjustable

The OxyRevo pressure switch valve, featuring an exclusive design, allows users to adjust the working pressure of the chamber at various levels ranging from 1.4/1.6/1.8/2.0ATA(or any pressure levels you like to set up) with the simple press of a valve. This unique feature enables all the users to initiate their hyperbaric oxygen therapy at a lower pressure levels and gradually work their way up to higher levels, ensuring a more controlled and comfortable experience for your HBOT treatment in an easy way.

Efficient Air Cooling System

Our efficient and powerful air conditioning system can will remove the humidity inside the chamber, giving dry and clean air to the chamber, it can also cool the air, ensuring a better cool and comfortable experience when using the chamber in the summer. Additionally, this system is electrically driven, eliminating the need for ice water or Freon and requiring zero maintenance. This feature adds to the comfort and overall pleasantness of using the chamber.

Anion Air Purification and Sterilization

The inclusion of an anion generator within the chamber ensures the effective dispersion of anions that are capable of removing 2.5 micron dust particles (PM2.5). This helps to purify the air within the chamber, resulting in a cleaner and fresher environment. Also a sterilizer with water nano technology to remove bacteria and heavy smell, also kill virus, a prefect solution for disinfection for commercial places like therapy centers and clinics.

OxyRevo Quest36 Hard Lying Hyperbaric Oxygen Chamber System

Contains Everything You will need, your One-Stop HBOT Solution

OxyRevo Quest36 Hard Hyperbaric Chamber Black 05


Inside/outside Pressure Gauges/PressureDeflate Valves/Control Panels/Display Screen.

Phone Communication System.

Presure Relief Valves.

Pressure Adjustable Switch.

Reading Lighting Led.

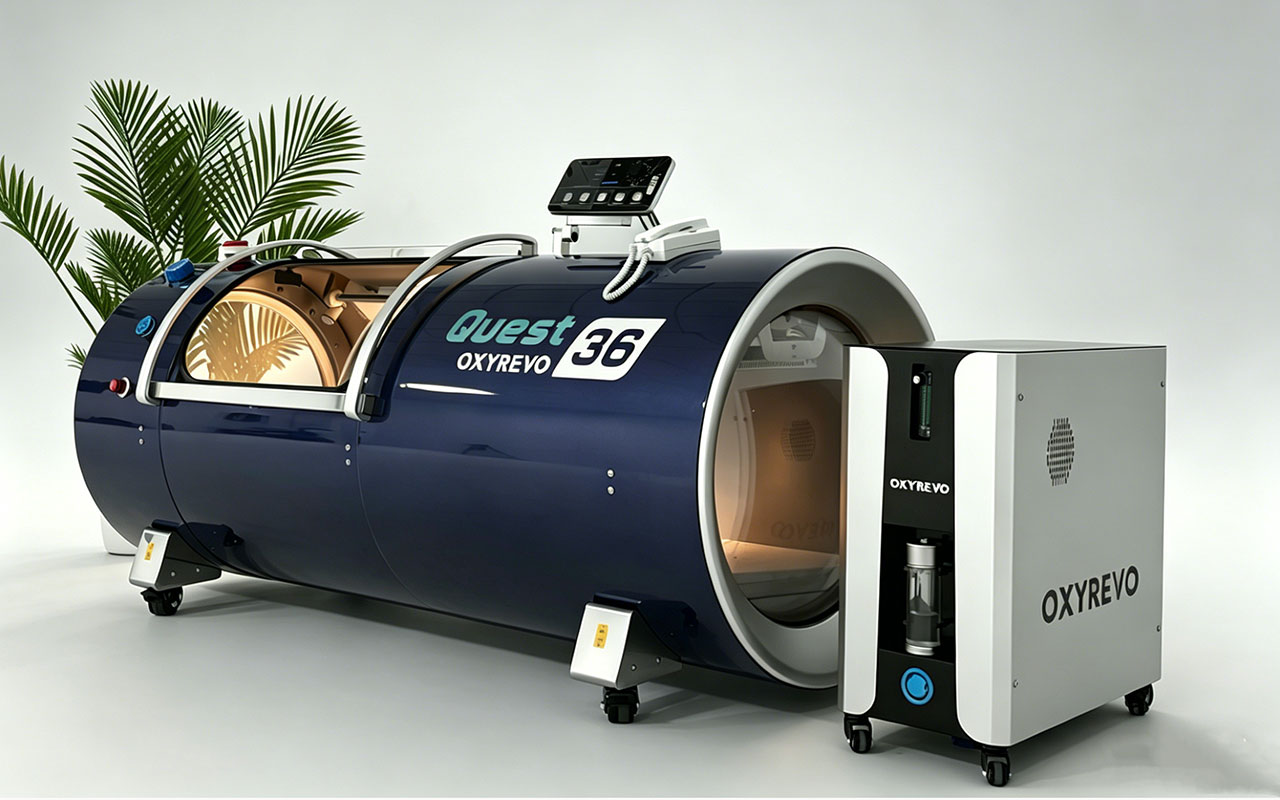

–All-in-one Operating Unit Machine:

1x Oil Free Air Compressor.

1x 10L Oxygen Concentrator.

2x Cooling Machines.

Anion Air Purifier.

Air Sterilizer/Anti-virus System.

Air Filter.

Humidity Water Cotainer.


Oxygen Mask.

Spare Filters/Fuses.

Air/Oxygen Tubes.

Power Cable.

Hard Hyperbaric Oxygen Chamber for Lying

-Stainless Steel Material, Solid and Durable.

Please review the video below to see how it looks like.

OxyRevo Hard Hyperbaric Chambers
Play Video about OxyRevo Hard Hyperbaric Chambers

We are proud of our chamber

We know our Clients’ needs and are committed to offering the Best Hyperbaric Oxygen Chamber

Hard Hyperbaric Chamber Window

Transparent Windows


These windows made of by high stregnth Polycarbonate customized, imported from Germany Bayer brand. Each end are with two windows with air gap design for more durable and longer lifespan, provide ample natural light, creating a bright and enjoyable environment for HBOT therapy, eliminates claustrophobia.

Digital Data Display Screen


Two screens INSIDE and OUTSIDE BOTH. Shows data of oxygen chamber like Oxygen Purity, Temperautre, and Humidity. Automaticlly controled, makes your HBOT treatment easy and smart!

Lighting Light inside of Hard Hyperbaric Chamber

Internal Control Board


Allows user inside can operate and control the hard oxgyen chamber's evrey step like, pressurization, depressurization, oxygen supply, dehumidification, refrigeration, lighting...Safe and Convenient!

Phone Communication System


A high definition phone communication system without any noise makes users inside and people outside communication simply. NO yelling or walkie talkie. Efficient and Clearly!

USB Port inside of Hard Hyperbaric Chamber

Door Safety Sensor


A door safety sensor has been installed in every unit of OxyRevo Hard Hyperbric Chambers' door. Make the user operation more safe, and never a risk of door damaged by wrong operation.

Frequently asked Questions

1.What are installation requirements?

The OxyRevo hard hyperbaric oxygen chamber system installation is very simple and easy, you will just need to connect the wires and tubes from the operating unit to the chamber tank, then start to use your chamber, NO special process required.

2. Can I use the hard hyperbaric chamber myself?

Yes, the OxyRevo hard hyperbaric chambers are available for single person to use and operate by himself via the vavles/control panels/pressure gauges/screens inside and outside both, simply easy and convenient.
